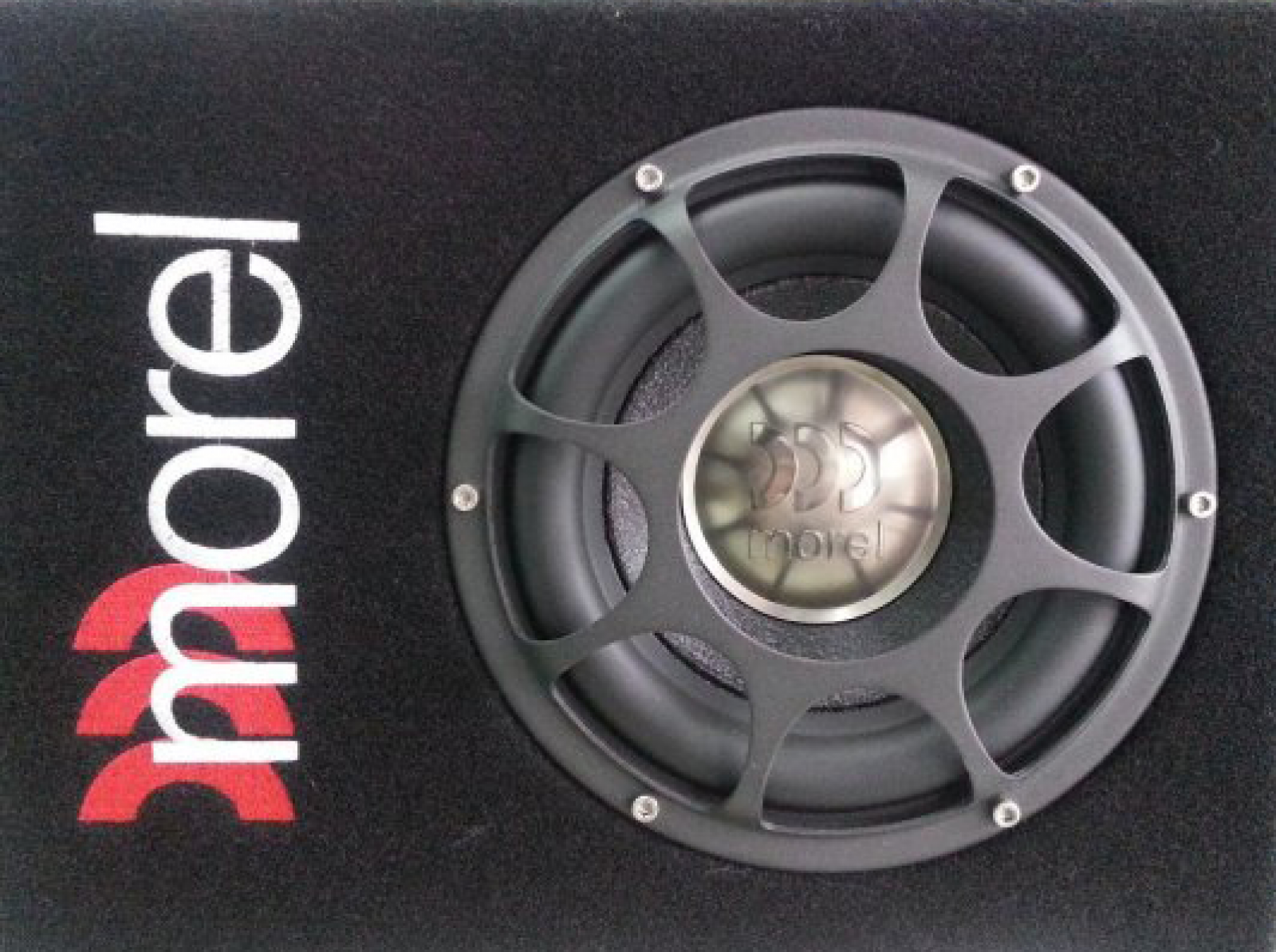

About the Morel Primo 804
Years of experience
Morel developed exciting new technologies when they built their award-winning Ultimo Titanium subwoofer. Now they've applied that knowledge and experience to building their Primo Series sub, a cost-effective bass driver that still offers Morel's signature qualities of high fidelity and high quality.
High efficiency
The Primo 804 12" subwoofer uses a treated laminated paper cone with a high-roll rubber surround to deliver superior bass. The cone is driven by a 2" voice coil of copper wire wound on an aluminum former. This sub handles up to 250 watts RMS (500 watts peak) and is equally at home in a sealed or ported enclosure. Designed for high efficiency, you can power the Primo 804 with a modest amplifier and still enjoy high-level output.
Product highlights:
- 8" 4-ohm component subwoofer
- external voice coil
- paper laminate cone with rubber surround
- power handling: 250 watts RMS
- peak power handling: 500 watts
- frequency response: 25-900 Hz
- sensitivity: 89 dB
- top mount depth: 4-3/8"
- sealed box volume: 0.42-0.8 cubic feet
- ported box volume: 0.55-1.1 cubic feet
- grille not included
-
MODEL SIZE &
CONFIGURATIONNOMINAL IMPEDANCE (OHMS) POWER HANDLING (WRMS) / PEAK
POWER (W)SENSITIVITY(2.83V/1M)
(DB)FREQUENCY RESPONSE (HZ) PRIMO 124 12" Diameter 4 350 / 700 91 20-900 PRIMO 104 10" Diameter 4 300 / 600 90 20-900 PRIMO 804 8" Diameter 4 250 / 500 89 25-900
What's in the box:
Morel Primo 804 owner's manual
- One 8" Single 4-ohm voice coil subwoofer
- Owner's manual
