- 產品介紹

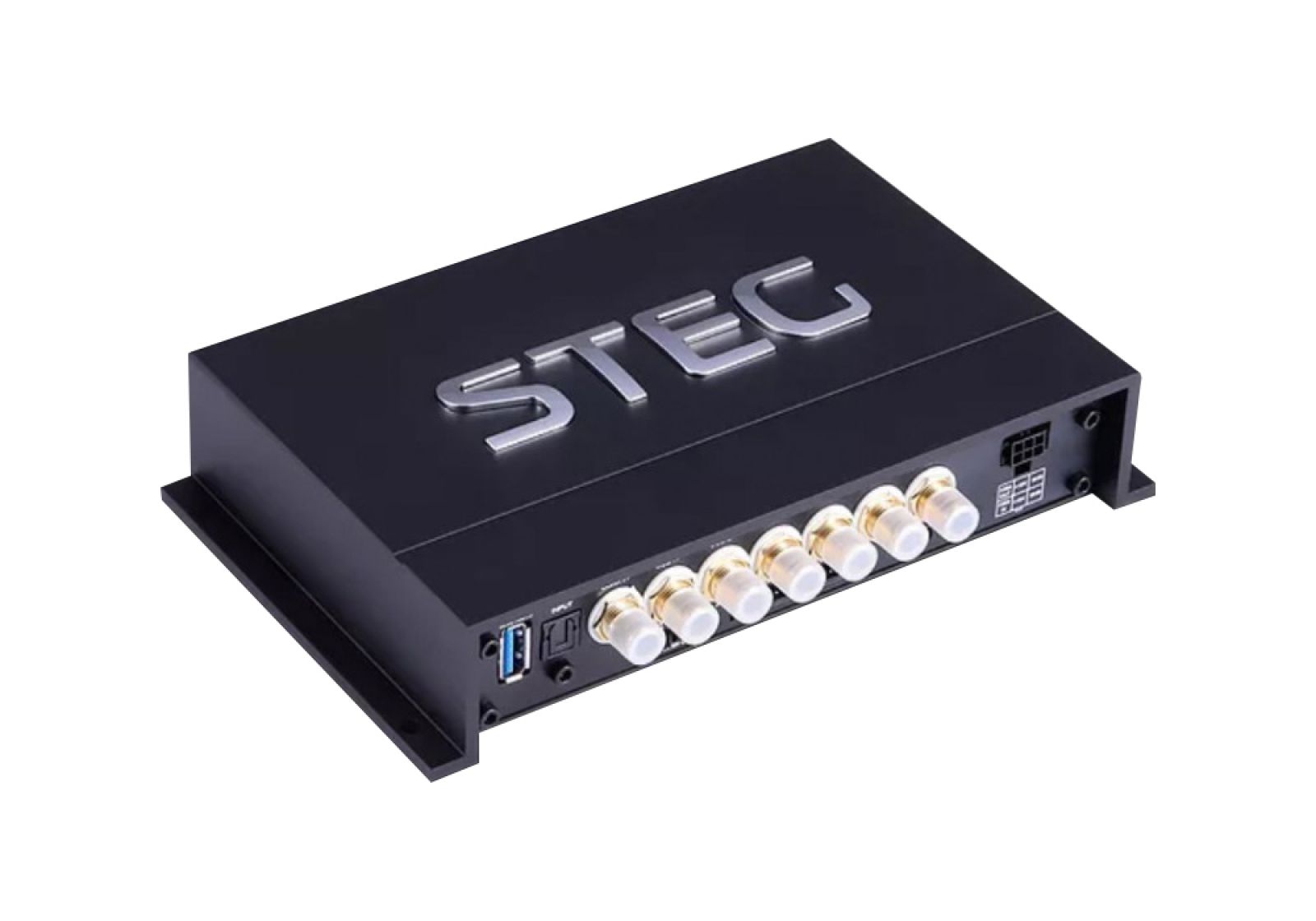

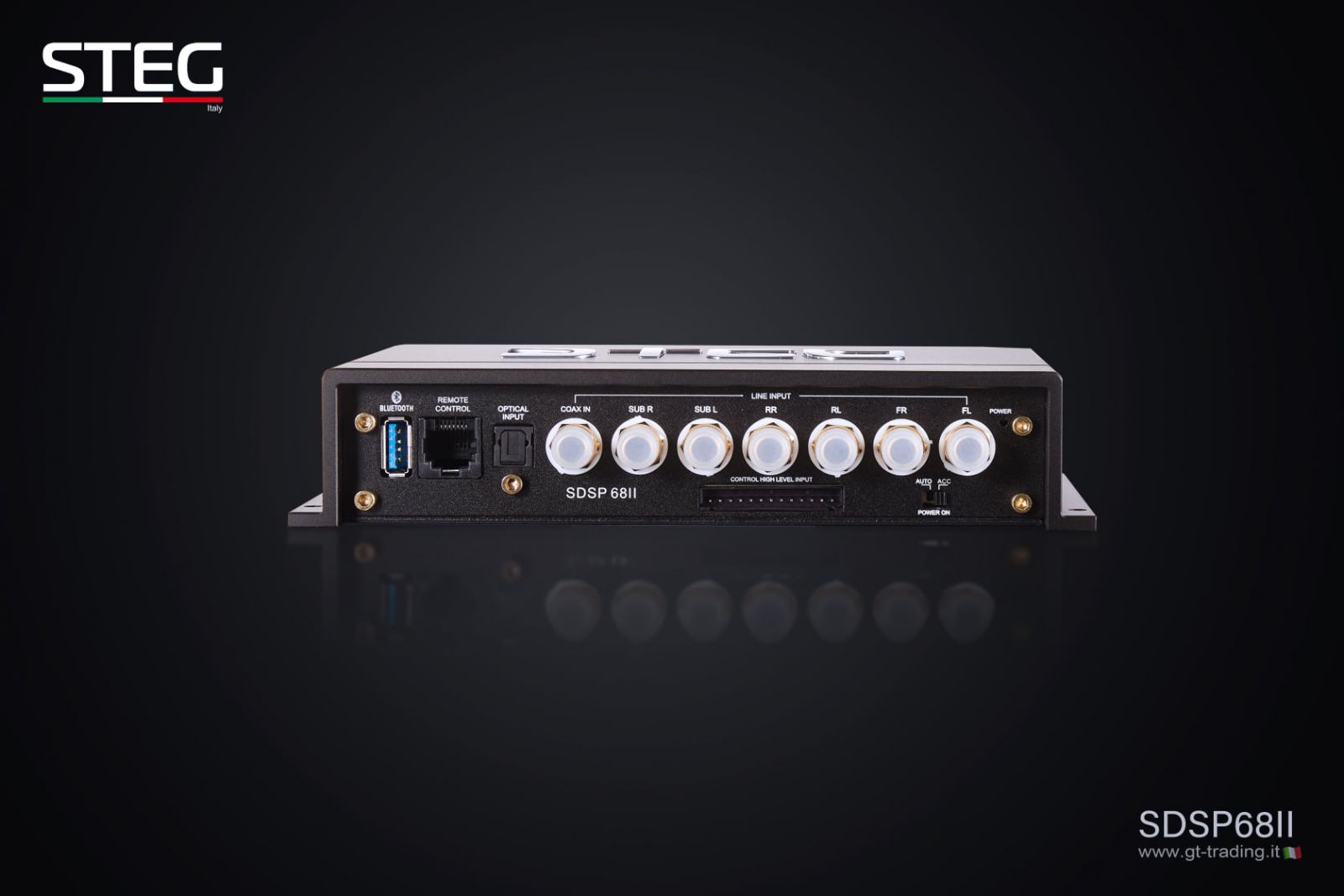

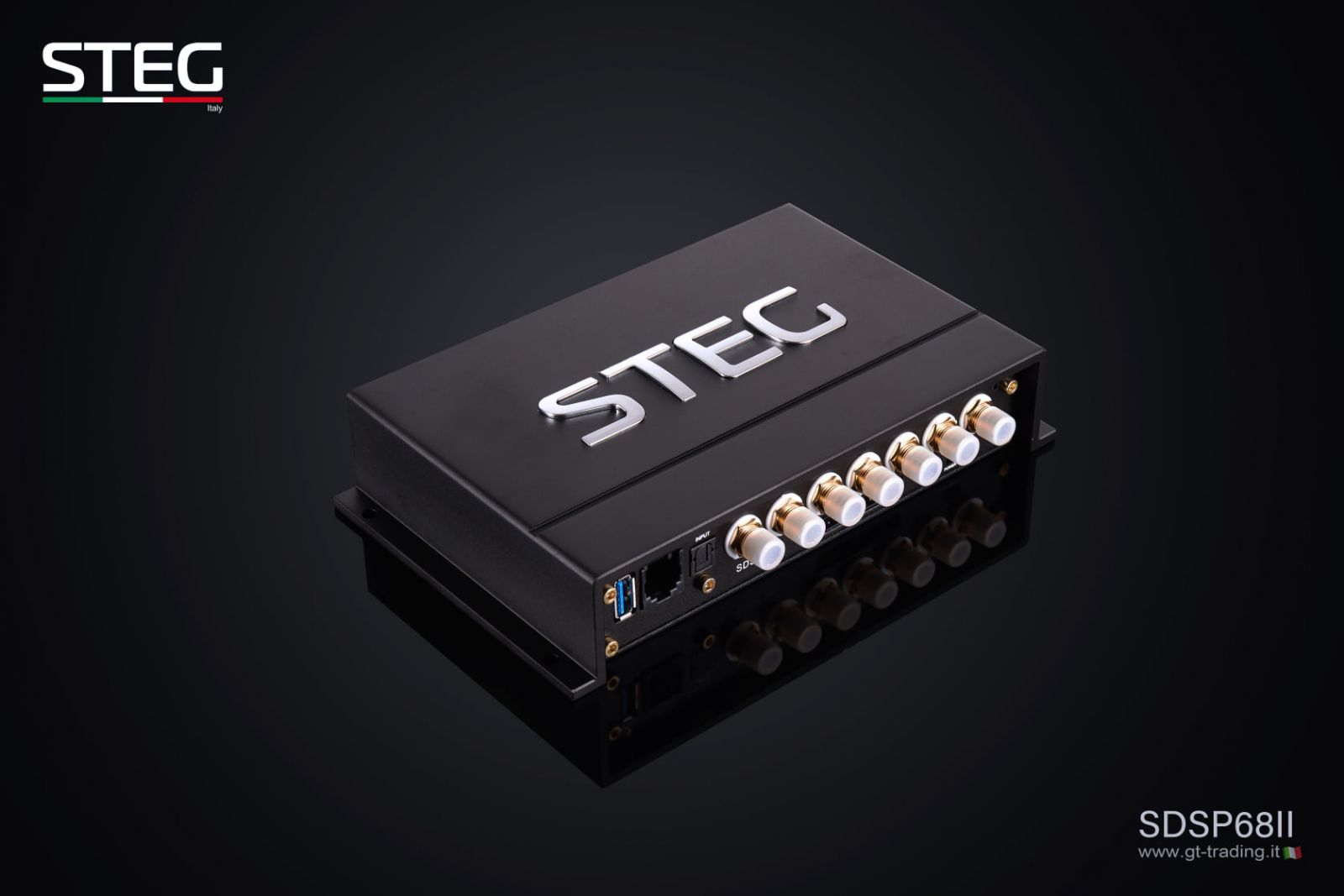

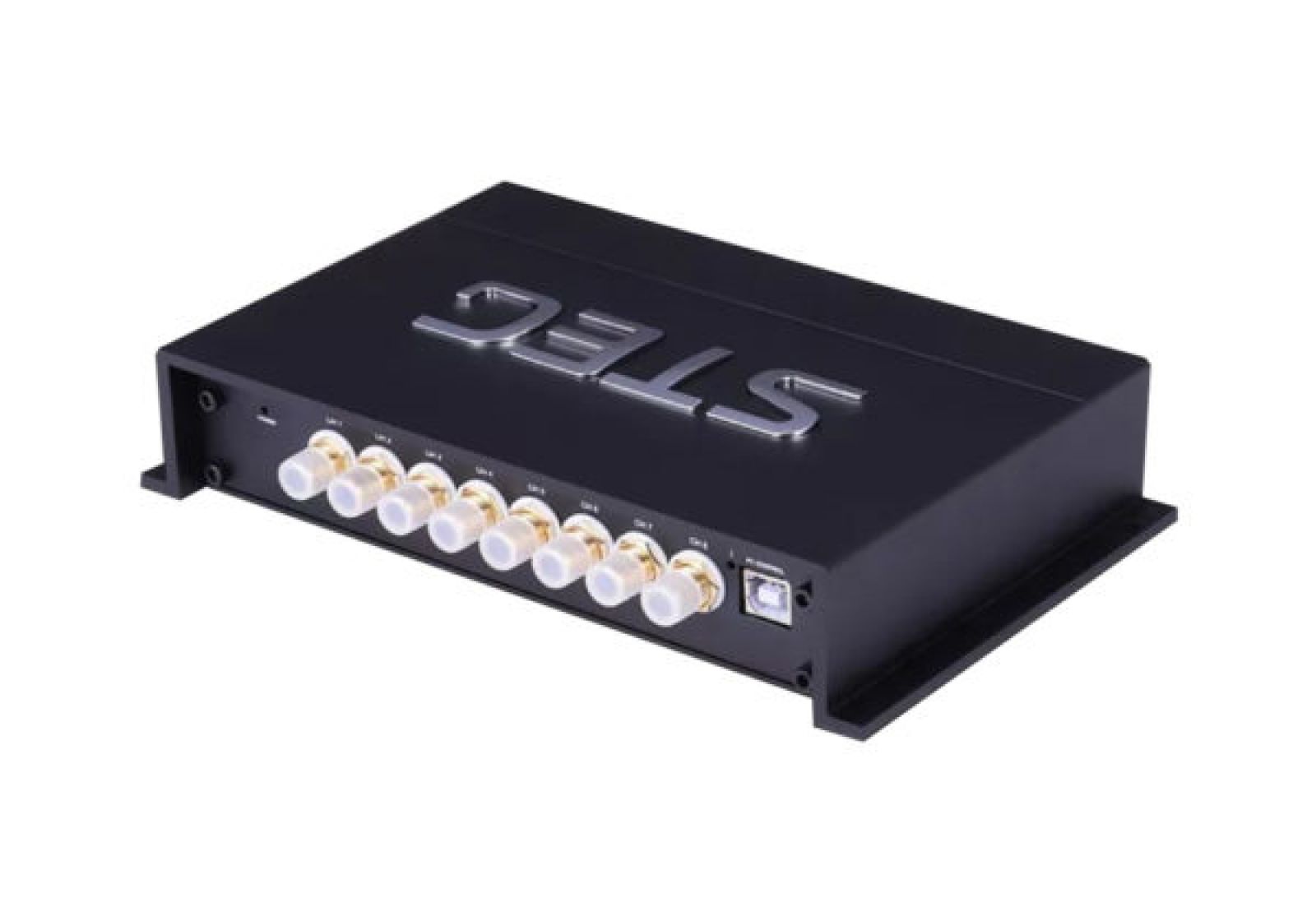

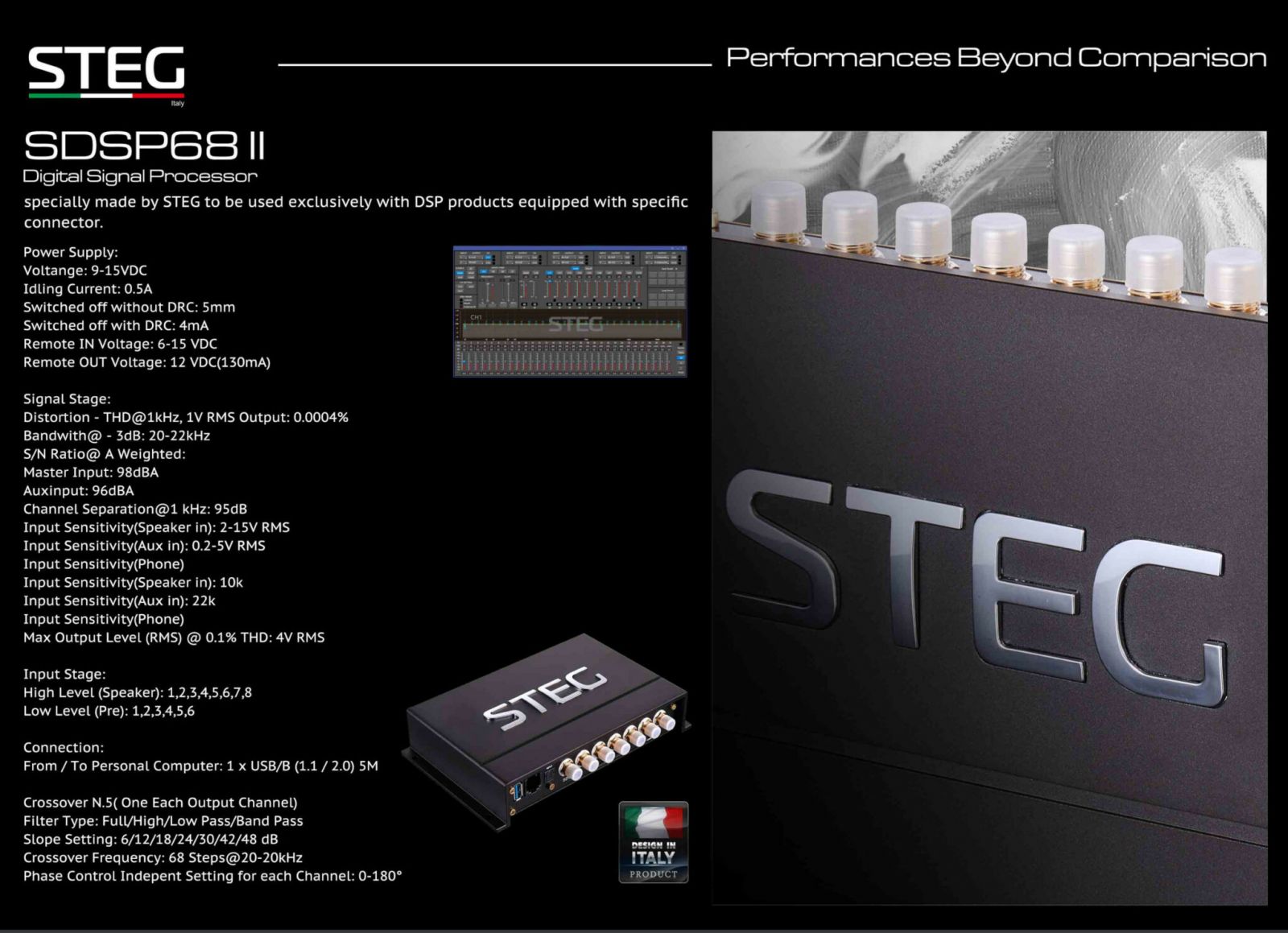

STEG SDSP68 II DSP 八聲道 數位訊號處理器
- 6 input, 8 output channels
- Time corrections with an accuracy of 0.02 msec, cm / msec.
- All settings work in real time
- External controller with display to change stored settings in DSP (up to 8 settings), control bass and input signal
- USB connection to PC for DSP setup
- Possibility to choose from low level input or high level input
- Operates at 9 – 15 Volts (max. 5 sec. At 6 Volts)
Features:
- 8-channel digital signal processor
- Max. Output level : 5 V
- RCA inputs: 6
- High Level Speaker In: 6 with Auto Turn On
- Coaxial Digital In: 1
- Optical In: 1
- RCA outputs: 8
- Digital Out 48kHz - 24-bit AD-Link: Ch 1 / Ch 8
- Dimensions: 225 x 32.3 x 150 mm
- Weight: 1,345 kg
- Optional STEG DRC control panel available!
- Optional operation via bridge BT possible!
Data:
- DSP 32Bit, 295 MHz,
- 48 kHz sampling rate- Start-Stop capable (max. 5sec down to 6 Volts)-
- Dimensions: 197 x 120 x 39 mm
