Nighthawk 夜鷹是一款優質低音放大器，經過精心完善，可實現最佳性能。憑藉其尖端的 D 類驅動器輸出，它提供了與其他放大器類別無法區分的結果，在 40Hz 下毫不費力地達到其額定功率。
- 產品介紹

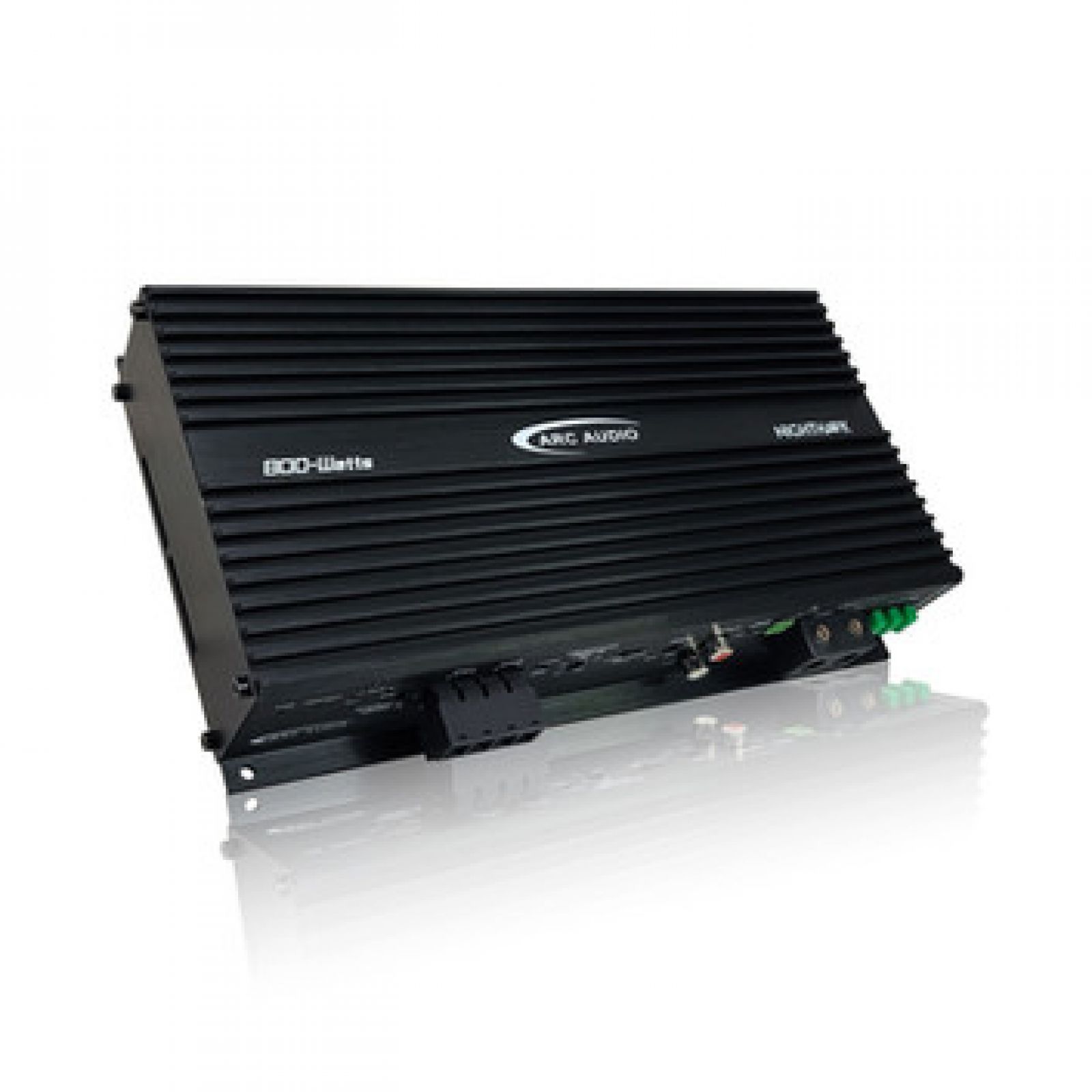

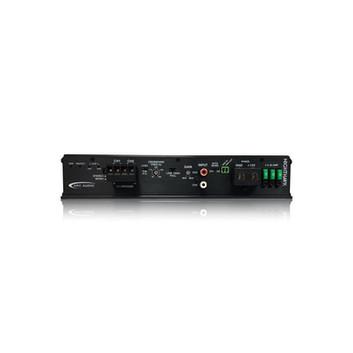

Nighthawk DSP Amplifier
Nighthawk 夜鷹放大器
Nighthawk 夜鷹是一款優質低音放大器，經過精心完善，可實現最佳性能。
憑藉其尖端的 D 類驅動器和英飛凌輸出，
它提供了與其他放大器類別無法區分的結果，在 40Hz 下毫不費力地達到其額定功率。
|
Stereo Power @ 14.4V-1% THD All Channels Driven |
|
|
|
4 Ohm = 250 Watts x 2 |
|
2 Ohm = 400 Watts x 2 |
|
|
1 Ohm = 400 Watts x 2 |
|
|
Bridged |
|
|
4 Ohm = 800 Watts x 1 |
|
|
2 Ohm = 800 Watts x 1 |
|
|
Distortion |
|
|
Below 0.02% THD from 100mW to 200 Watts |
|
|
Best THD 0.005% 2 Watts to 20 Watts |
|
|
THD 20Hz to 20KHz (1 Watt) .009% |
|
|
Signal to Noise Ratio |
|
|
-88dB Referenced to 1 Watt (2V) |
|
|
-113dB Reference to Full Power (31.5V) |
|
|
Crossover |
|
|
55Hz -500Hz 12dB Per Octave |
|
|
Highpass, Lowpass Full Range |
|
|
State variable filters |
|
|
Linkwitz Riley |
|
|
Bandwidth |
|
|
10Hz to 20KHz (-1dB) |
|
|
10Hz to 32KHz (-3dB) |
|
|
Operating Voltage |
|
|
10.5VDC – 17.1VDC |
|
|
Low voltage warning light |
|
|
11.4VDC |
|
|
Start Stop Voltage |
|
|
4.6VDC |
|
|
Gain Range |
|
|
150mV – 5.25V |
|
|
Input Type |
|
|
Balanced |
|
|
Operating Temperature |
|
|
-4F – 180F (-20C -- 82C) |
|
|
Fuses |
|
|
3 x 30A |
|
|
Type Mini ATM |
|
|
Dimensions |
|
|
10.35”(L) x 6”(W) x 2”(H) |
|
|
260mm(L) x 152mm(W) x 51mm(H) |
|
|
Features |
|
|
DC Auto Detect Turn On |
|
|
Speaker Connection by High Current Plug |
|
|
Selectable Ohm Load Stability |
|
|
Stereo/Mono Switch allows single input operation. |
|
|
Start Stop compatible. |
|
|
Compatible with charging systems up to 17 Volts. |
|
|
Variable Speed Ball Bearing Fan Cooling |
